8. Building Out Our SpringBoot Layer

Starting today with building out the Spring Boot API layer for our RAG AI chatbot. Our end goal involves us integrating our Spring Boot endpoints into a Slack application:

When Slack sends a /ask request, our endpoint needs to do a few things:

1. Return a 200 OK response status to Slack within 3 seconds
2. In the background, process our RAG query (5 - 15s)
3. Post the answer back to Slack via response_url

This is important to consider when deciding between the two dependencies Spring Web and Spring Reactive Web. I have not worked with Spring Reactive web before but Claude outlines a few differences between both:

Spring Web	Spring Reactive Web
Built on top of the traditional Servlet API	Built on Project Reactor
Synchronous and blocking — when a request comes in, a thread is assigned to it and blocks until the response is ready	Non-blocking and async — a small number of threads can handle thousands of concurrent requests
Uses RestTemplate for outbound HTTP calls	Uses WebClient for outbound HTTP calls
What most Spring Boot apps use by default	Better for high concurrency and I/O heavy workloads
Simpler to reason about	Steeper learning curve

With Spring Web, step 1 and step 2 would happen on the same thread, so the response can’t go out until the RAG query finishes. With Reactive WebFlux, step 1 returns immediately and step 2 runs asysncrhonously, but we can get around this with @Async and thread pools, so I’m going to go with route 1 for the learning experience

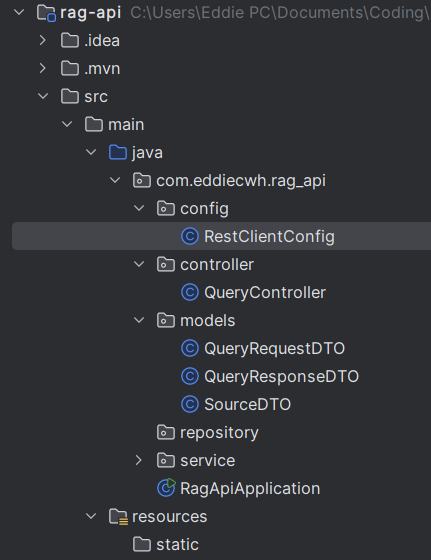

Base SpringBoot project dir buildout

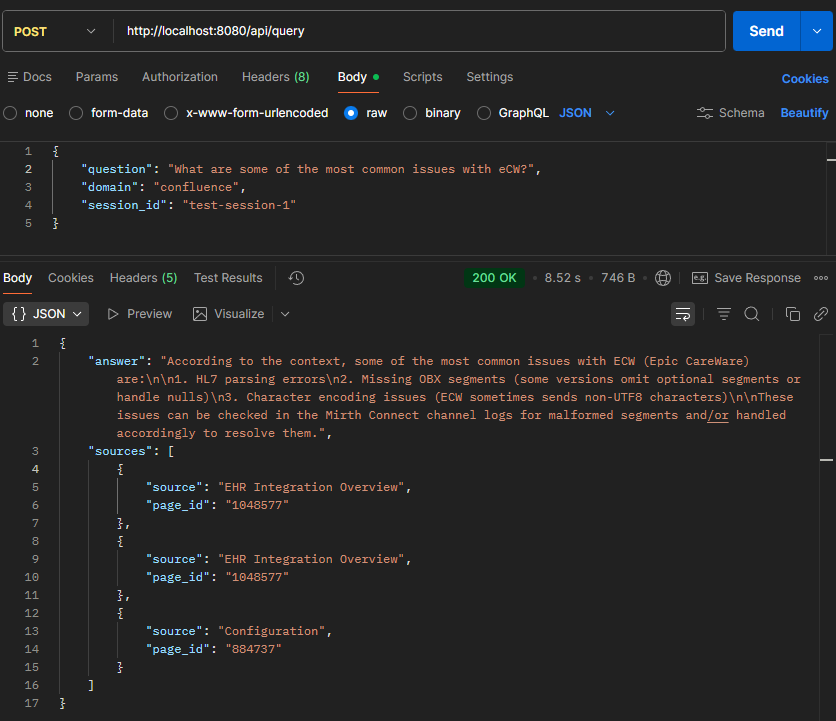

Testing our 1 endpoint:

Sprint Boot (/api/query) -> FastAPI (/api/query) -> response

We are able to get a succesful response. Seems silly now, 2 endpoints that are doing the same thing, but it’ll make more sense when we incorporate the use of the session values so we can implement conversational RAG and our application be more than a 1 question 1 answer chatbot.

Building Out Conversational Rag

With our current setup, our requests to our FastAPI endpoints are stateless

1. We ask our question
2. Our LLM reads our query and supplied context
3. Then returns a response

• conversation ends *

With Conversational RAG, the key idea is to pass the conversation history as part our prompt

So instead of:

Question: what is ehr_timeout_seconds?
Answer: It's 30 seconds in staging

Question: What about in production?
Answer: I don't know

second question is stateless and passes no context from previous requests

So with conversational rag:

Previous conversation:
Question: what is ehr_timeout_seconds?
Answer: It's 30 seconds in staging

Current Question:
Question: What about in production?
Answer: It's 15 seconds in production

second question is stateful and passes conversation history from previous requests

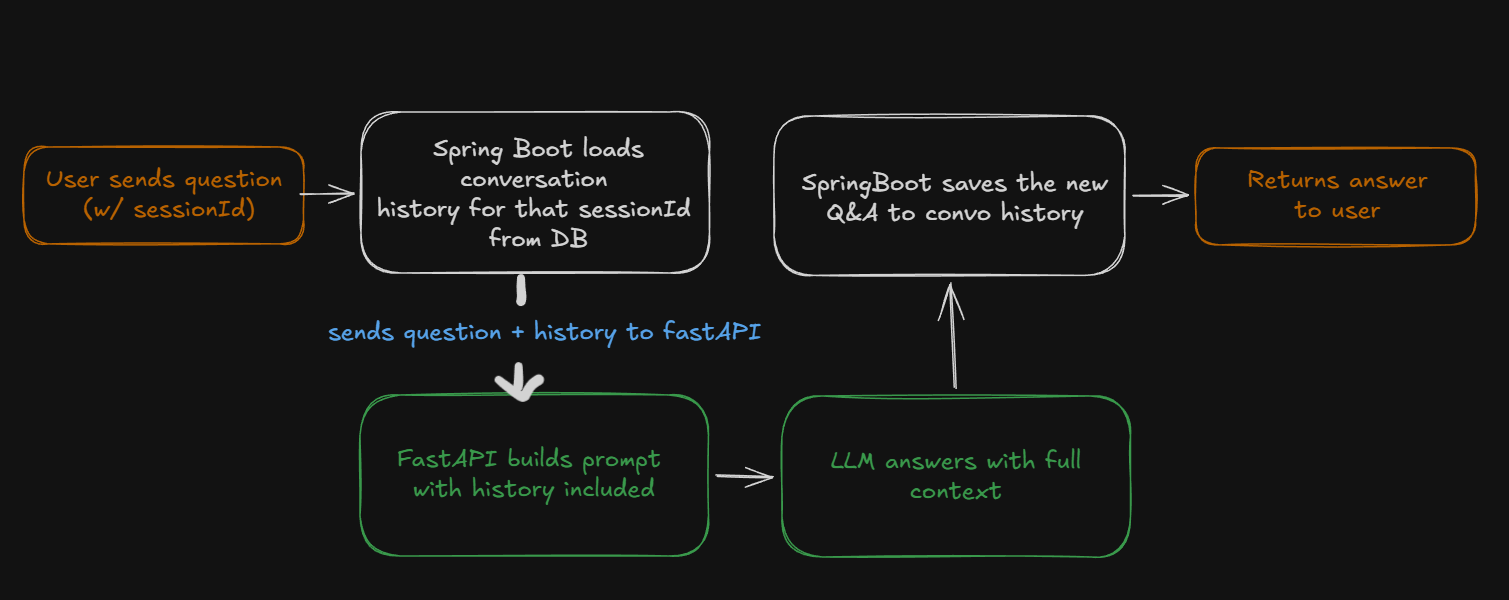

Our Python service will continue to remain stateless. Spring Boot will manage the state, each request will just include the history.

What we will need:

• A ConversationHistory JPA entity — stores messages per session
• A ConversationRepository — reads/writes history
• Update QueryService — load history, send with request, save response
• Update FastAPI QueryRequest — accept conversation history

Let’s think through our schema, for our table conversation_history

id            SERIAL PRIMARY KEY
session_id    VARCHAR(255)    -- groups messages into one conversation
role          VARCHAR(50)     -- "user" or "llm"
content       TEXT            -- the actual message text
created_at    TIMESTAMP       -- when it was sent

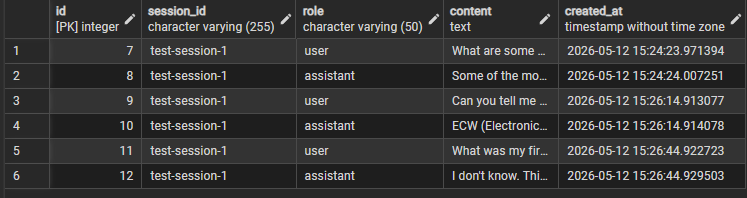

Each row in the table will contain one message from either side

id	session_id	role	content	created_at
1	session-abc	user	what is ehr_timeout_seconds?	2026-05-01	10:00
2	session-abc	llm	It’s 30 seconds in staging	2026-05-01	10:00
3	session-abc	user	what about in production?	2026-05-01	10:01
4	session-abc	llm	It’s 60 seconds in production	2026-05-01	10:01

We could have session_id be a foreign key that belongs to its own table, but to keep things simple I think we’ll design this in mind that the value will be auto generated everytime a new chat is started

Our new requestBody that is passed through each API call (via SpringBoot) should now also incorporate our new history field (all previous messages belonging to the same sessionId)

{
  "question": "what is ehr_timeout_seconds?",
  "domain": "confluence",
  "sessionId": "abc-123",
  "history": [
    {"role": "user", "content": "what is appointment_sync_enabled?"},
    {"role": "assistant", "content": "It controls whether sync jobs run..."}
  ]
}

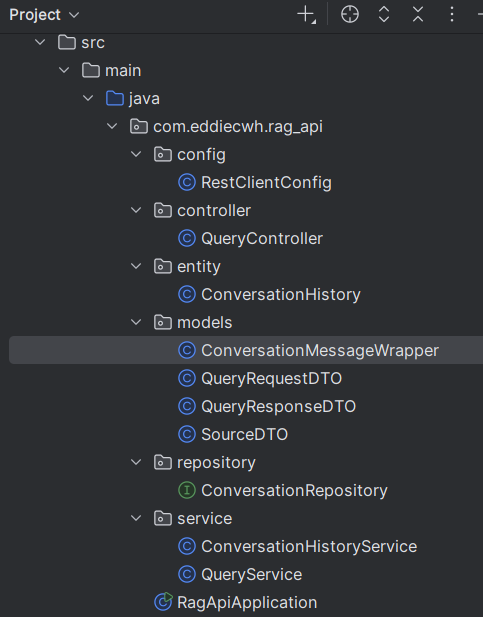

Updated project structure

I am now also realizing that I did not updated the build_prompt method in our Python script so our context isn’t actually being used…

Creating and mofiying our wrapper classes and requestBodies to mimic our Java DTOs setup

class ConversationalMessage(BaseModel):
  role: str
  content: str

class QueryRequest(BaseModel):
  question: str
  domain: str = None
  session_id: str = None
  history: Optional[List[ConversationalMessage]] = None

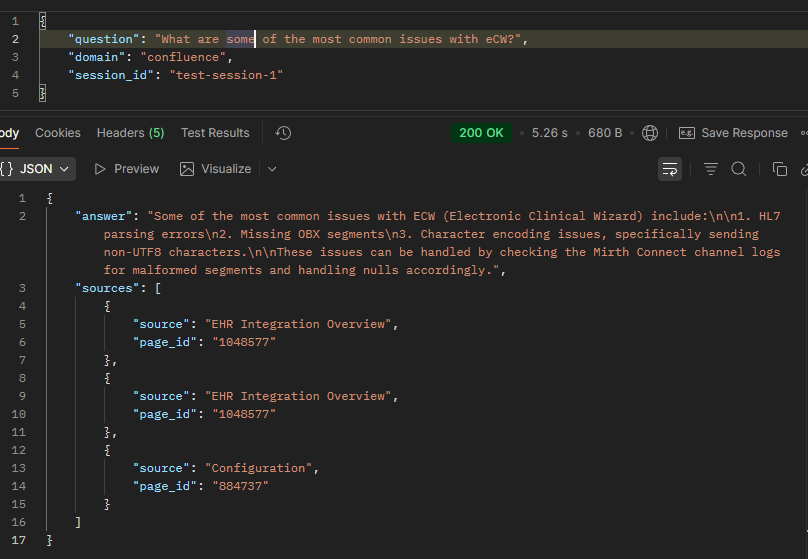

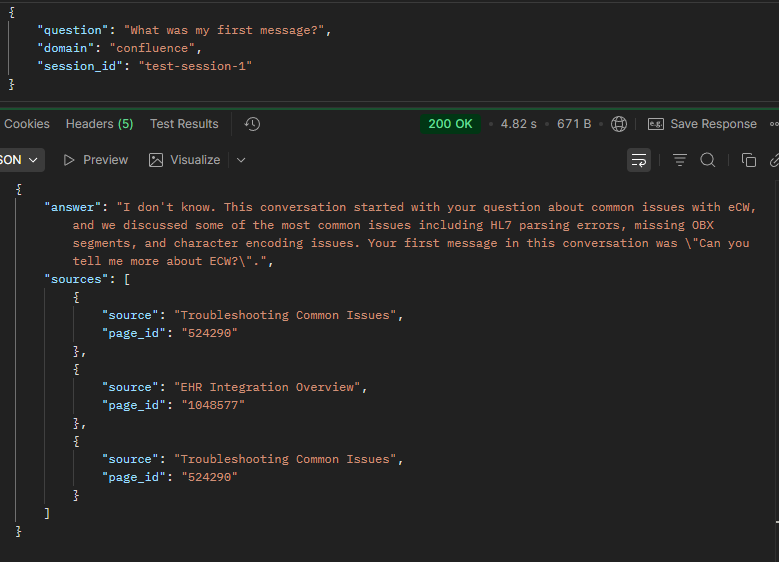

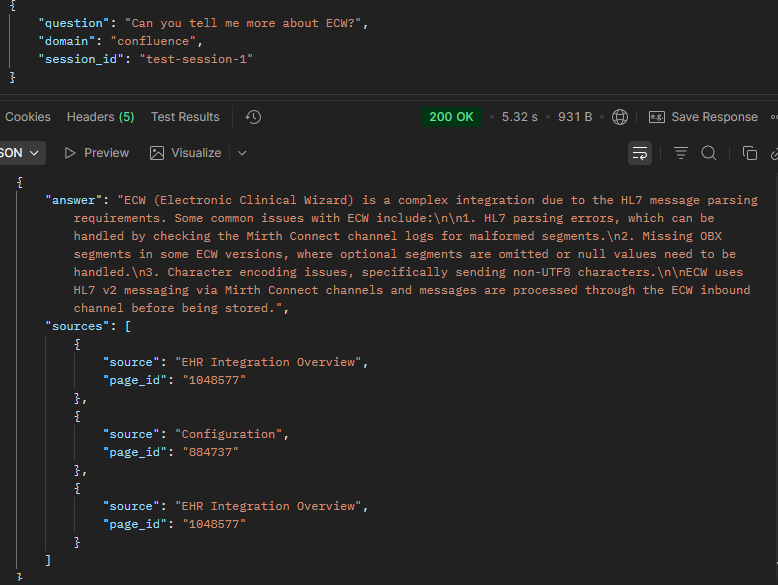

Testing our Conversational RAG ChatBot

Looks good, we’re able to have more than a one question conversation! Although, I’ll have to make some changes to the domain field as it requires a domain to be given (confluence, slack, etc..) or it will fail, and it is currently setup as a string so if it is not a direct match with what’s in the database it will fail.
